INTENSIVE EXTRACTION
A powerful intensive speed can be selected when
quick extraction is needed, whether you’re creating a
sizzling stir fry or a preparing an aromatic curry, even
the strongest cooking odours will be removed in no
time

PERIMETER EXTRACTION
This is an extremely efficient extraction process
where vapors are drawn in through a restricted area
of the hood quickly and then decrease once inside
which reduces noise as it limits the vibrations of the
filters

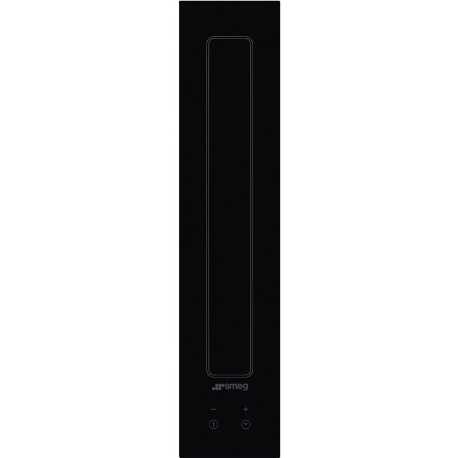

Hood width: 12 cm • Product family: Hood • Extraction: Expulsion •Hood Type: Fully Integrated • Perimeter extraction: Yes • Electronic control: Yes AESTHETICS Aesthetics: Universal • Design: Fully integrated • Glass Type: Black • Colour: Black • Finishing: Glass • Material: Glass CONTROLS Display: Digital • Control setting: Touch control • Led color: Ice PROGRAMME / FUNCTIONS No. of speeds: 3 • Intensive speed: Yes • Time-setting options: Automatic switch-off TECHNICAL FEATURES Free outlet maximum capacity: 570 m³/h • Motor power: 145 W • Anti-grease filters: Stainless steel • No. of filters: 1 • Filter replacement indicator: Yes

PERFORMANCE / ENERGY LABEL Air flow at maximum speed (Qmax): 470 m³/h • Measured air flow rate at best efficiency point (Qbep): 295 m³/h • Fluid Dynamic Efficiency (FDE): 32 • Air flow at minumum speed (Qmin): 370 m³/h • Annual Efficiency Consumption (AEChood): 36,6 KWh/year • Grease Filtering Efficiency (GFE): 75,1 % • Grease Filtering Efficiency Class (GFEC): C • Power Consumption in Off mode (Po): 0,49 W • Measured air pressure at best efficiency point (Qbep): 490 Pa • Fluid Dynamic Efficiency class (FDEC): A • Airborne acoustical A-weighted sound Power Emission at maximum speed (SPEmax): 69 dB(A) • Energy efficicency class ( EEC): A+ • Time increase factor (F): 0,8 • Air flow at boost speed (Qboost): 550 m³/h • Lighting Efficiency Class (LEC): NA • Energy Efficiency Index per first cavity: 43,4 • Measured electric power input at best efficiency point (Wbep): 125 W • Airbourne acoustical A-weighted sound power emission at boost speed (SPEboost): 72 dB(A) • Airbourne acouistical A-weighted sound Power Emission at minimum speed (SPEmin): 62 dB(A) • Sound power level at highest setting (Lwa): 72 dB(A)

SPEED 1 Power: 60 W • Noise level IEC 60704-2-13: 62 dB(A) • Extraction rate IEC 61591: 370 m³/h SPEED 2 Power: 80 W • Noise level IEC 60704-2-13: 66 dB(A) • Extraction rate IEC 61591: 420 m³/h SPEED 3 Power: 110 W • Extraction rate IEC 61591: 470 m³/h • Noise level IEC 60704-2-13: 69 dB(A) INTENSIVE SPEED Extraction rate (IEC 61591): 550 m³/h • Noise level IEC 60704-2-13: 72 dB(A) • Power: 145 W
